Red Role 48V 160Ah

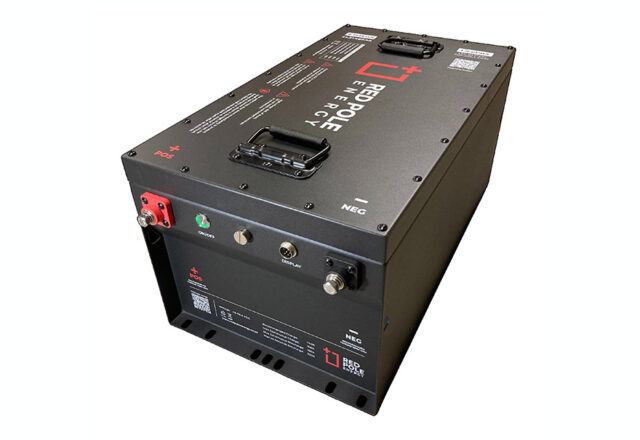

Red Role 48V 160Ah LiFePO4 Lithium Battery

Overview

R 54 574 inc. VAT

Availability

In stock
  • bolt 160 Ah
  • battery_std Lithium-ion

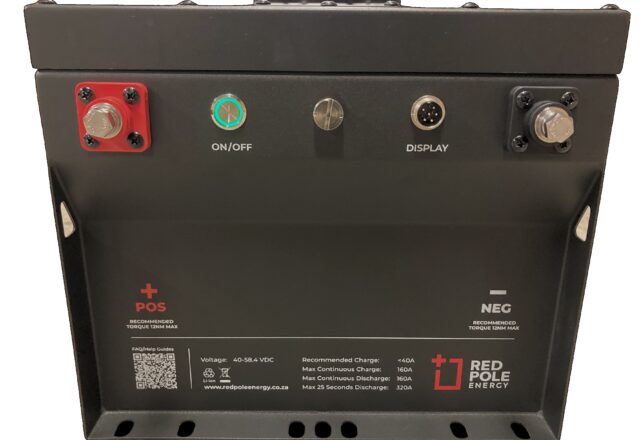

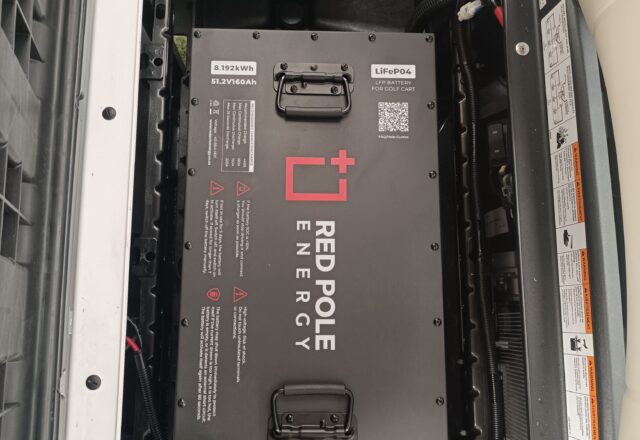

The Red Pole 48V 160Ah Lithium battery is the ultimate heavy-duty power solution for high-demand Yamaha golf cars and commercial applications. This conversion kit nearly doubles the capacity of standard units, delivering a massive 500A peak current for rapid acceleration and the torque required to conquer steep inclines under heavy loads. The kit includes the 160Ah LiFePO4 battery in a durable IP65 case, a smart LCD dash display, and a rugged 20A waterproof charger.

This upgrade significantly extends your runtime between charges while remaining up to 70% lighter than traditional lead-acid sets. With an expected 10-year lifespan and over 3,500 cycles, it represents a cost-effective, long-term investment backed by a 5-year warranty. The integrated Battery Management System (BMS) ensures the unit is constantly protected, providing consistent performance in even the most rugged environments.

The “install and forget” design eliminates all maintenance, from fluid top-ups to terminal cleaning. The industrial-grade charger allows for fast power recovery, ensuring your Yamaha remains operational with minimal downtime. It is a professional-grade power transition that delivers superior efficiency, enhanced handling, and reliable power year after year.

Show more

Highlights

  • Maintenance-Free Heavy-Duty Power
  • 10-Year Lifespan
  • High-Performance Weight Reduction
Show more

Specifications

  • Nominal Voltage 51.2 VDC
    Usable Capacity 8.19 kWh
    Nominal Capacity 160 Ah
    Operating Voltage Range 40 – 58.4 VDC
    Max Charge Voltage 57.6 VDC
    Recommended Charge Voltage 55.2 VDC
    Over-Voltage Charge 58.4 VDC
    Recommended Charge Current Max 40A
    Quick Charge Current Max 80A
    Discharge Cut-Off Voltage 40 VDC
    Max Continuous Discharge Current 160A
    Peak Discharge Current (< 25s) 320A
    Peak Discharge Current (< 1s) 500A
    Operating Temperature Range Charge: 0ºC to 65ºC | Discharge : -20ºC to 65ºC
    Communication Protocols CAN, RS485, Bluetooth
    Self-Discharge Rate Max 3.5% per month
    Battery Weight 73kg
    Dimensions (L x W x H) 550 x 308.5 x 265.5mm
