Linhai T-Archon 400

Linhai T-Archon 400 Petrol UTV

Name: Linhai T-Archon 400
Brand: Linhai

Overview

From R 150 000 inc. VAT

Availability

Enquire for stock

local_gas_station Petrol
airline_seat_recline_extra 2-seater

local_bar Leisure
construction Work

Supplementary cart

The Linhai T-Archon 400 is an incredibly versatile, all-around side-by-side off-road vehicle built to tackle demanding tasks with ease. Powered by a dependable 352cc liquid-cooled, four-stroke engine with Electronic Fuel Injection (EFI), it delivers 25.5 horsepower alongside excellent fuel efficiency. Paired with a smooth Continuously Variable Transmission (CVT) and selectable 2WD/4WD with locking differentials, it provides the rugged, go-anywhere capability needed for farms, rural properties, and large-scale estate events.

Beyond its impressive performance, the T-Archon 400 is designed with supreme practicality and operator comfort in mind. The spacious cabin features a comfortable 3-person bench seat, adjustable steering, and protective standard additions like a hard top roof and windscreen. Boasting a heavy-duty tipping tray, standard winch, and tow bar right out of the box, this 4×4 buggy is a fully equipped workhorse ready to handle endless utility applications.

Brochure

Download Brochure

Highlights

Reliable 352cc liquid-cooled, 4-stroke EFI engine producing 25.5 hp
Smooth CVT transmission with selectable 2WD/4WD and locking differentials
Comfortable 3-person bench seating with generous head and legroom
Heavy-duty tipping utility tray with convenient fold-down, removable sides
Premium dual A-arm independent suspension for a stable off-road ride
Fully equipped standard with a winch, tow bar, alloy rims, and LED lights

Colours

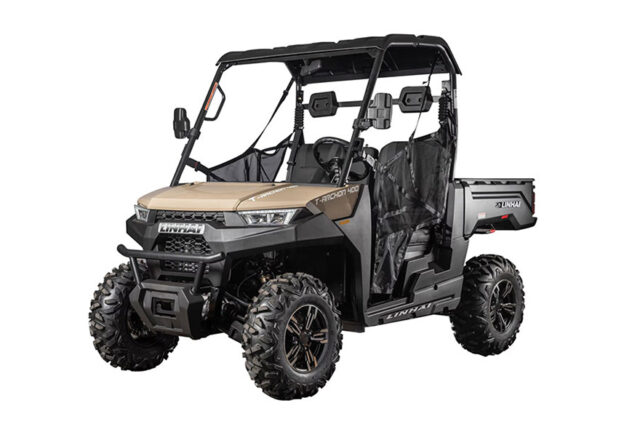

Quicksand

Standard colour

- Contact for stock

Highlights Video

Features

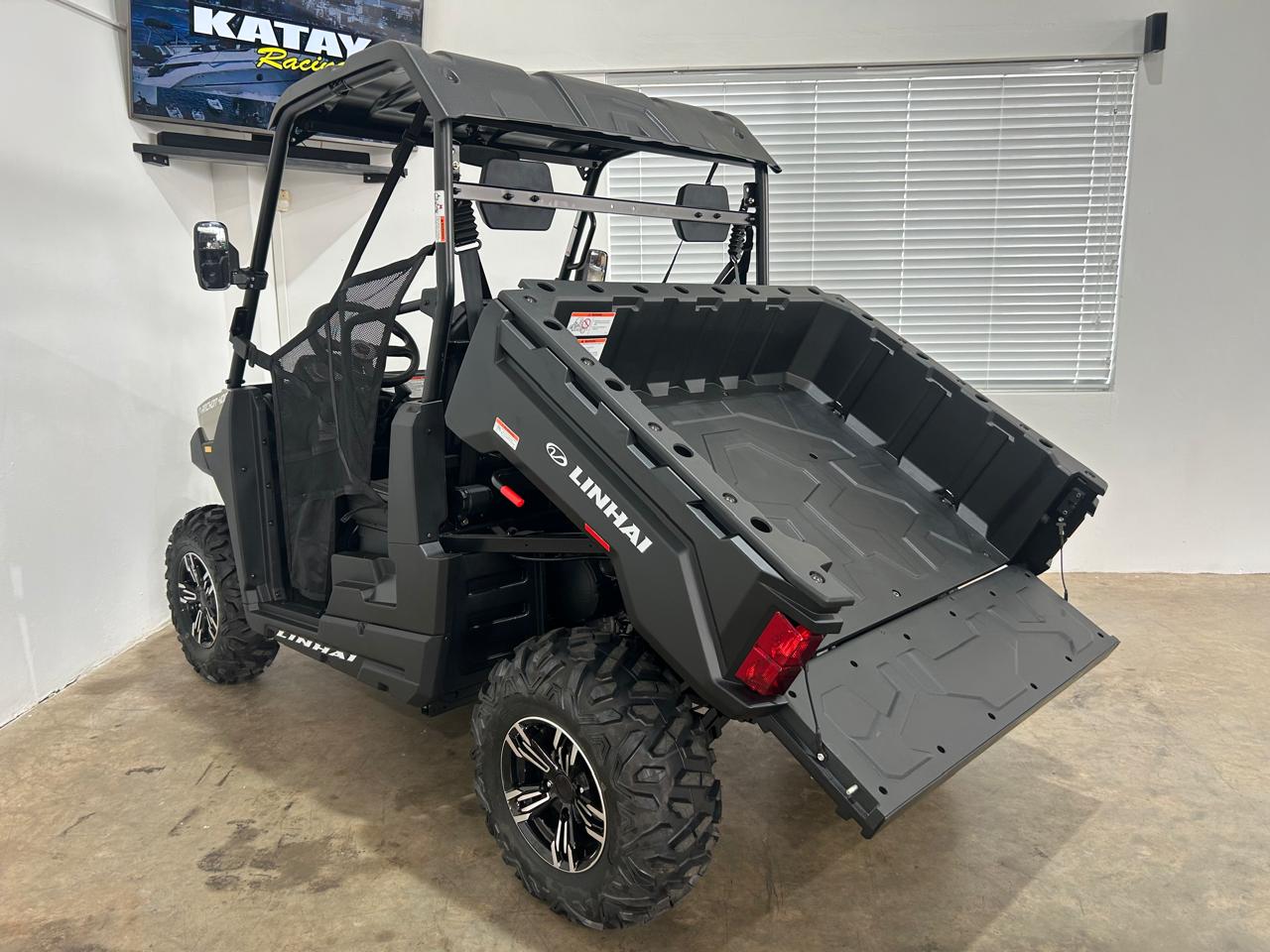

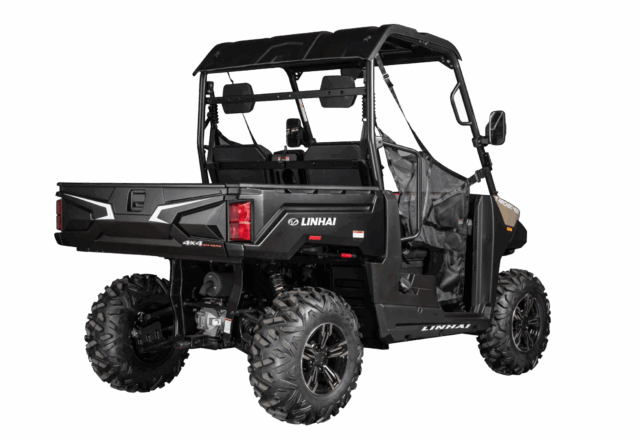

Tipping Utility Tray

Transport and unload heavy gear effortlessly using the rugged, high-capacity tipping cargo bed that features a fold-down tailgate and removable sides.

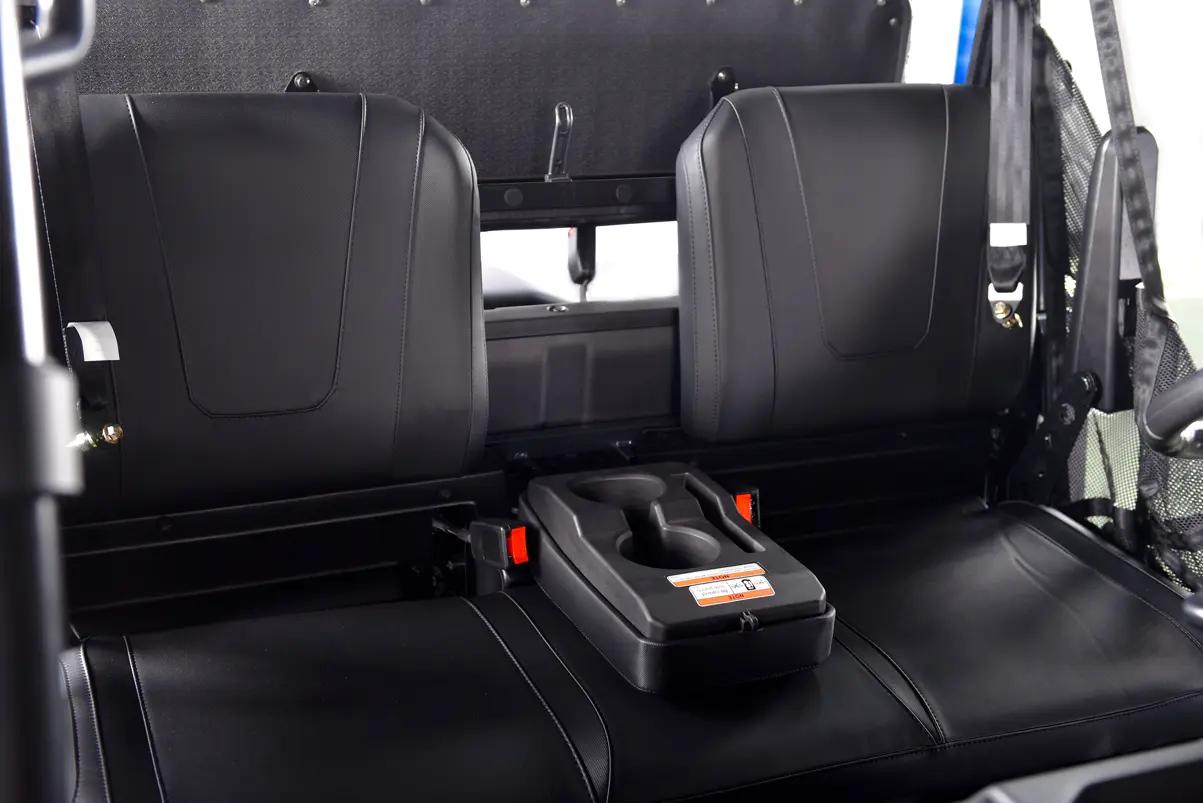

Contoured Seating with Center Console

The spacious cabin features a continuous bottom cushion with contoured seat backs for maximum comfort, complete with standard seatbelts and a fold-down center armrest with built-in cup holders.

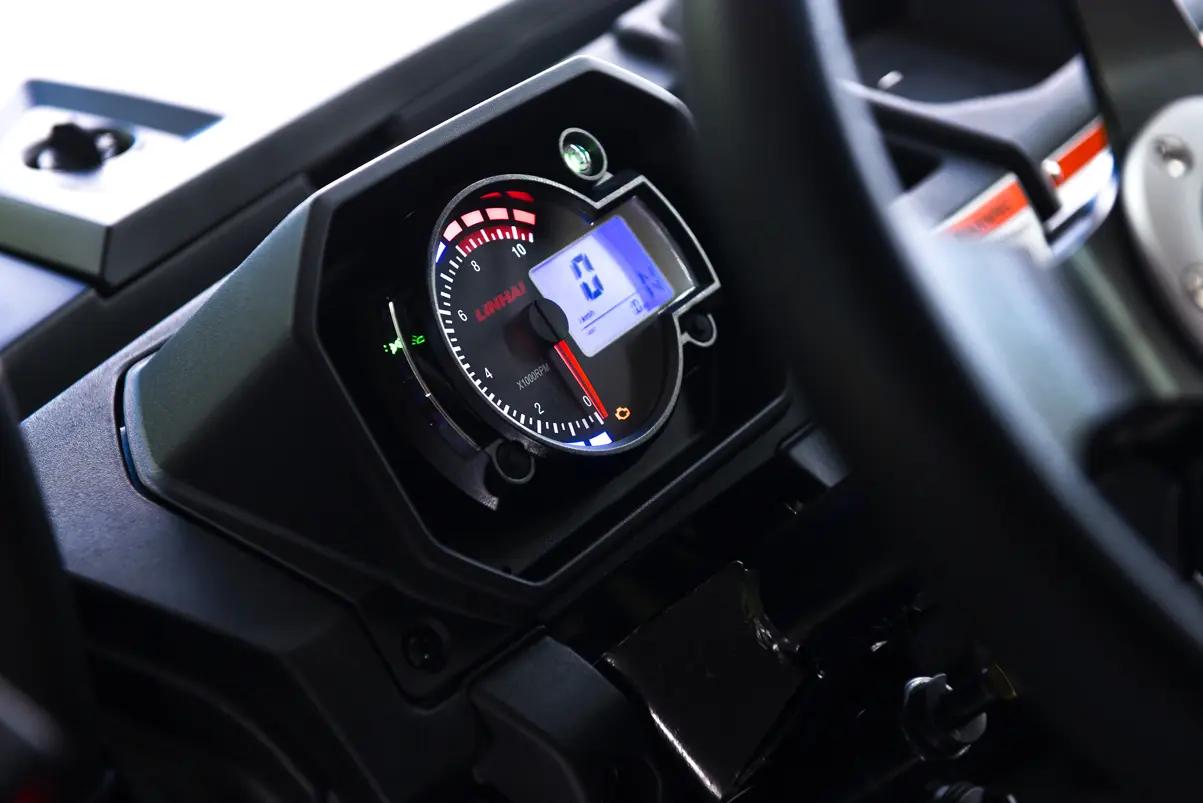

Digital Instrument Cluster

A brightly backlit dashboard keeps vital vehicle information, including speed, RPM, and gear selection, easily visible at a glance.

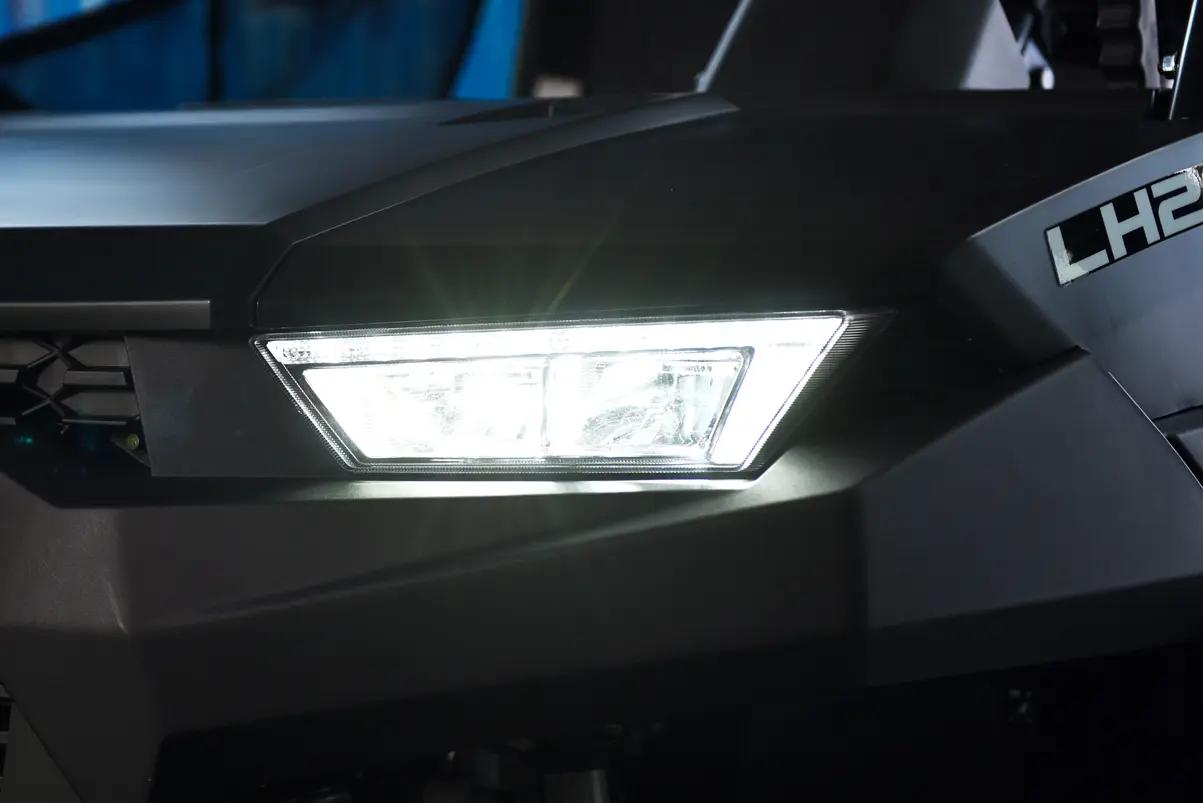

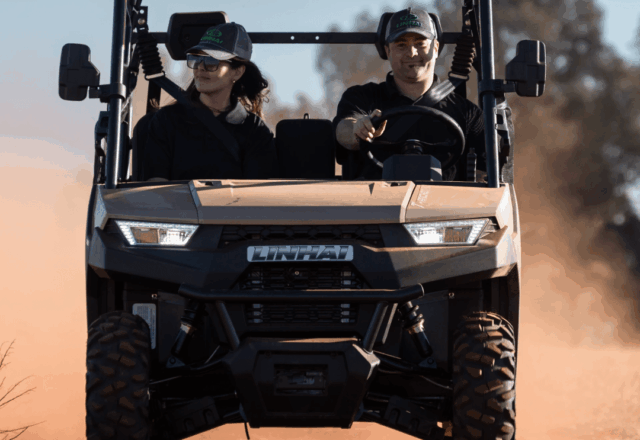

Premium LED Lighting

Navigate early mornings or low-light conditions safely and confidently with powerful, high-visibility front LED headlights.

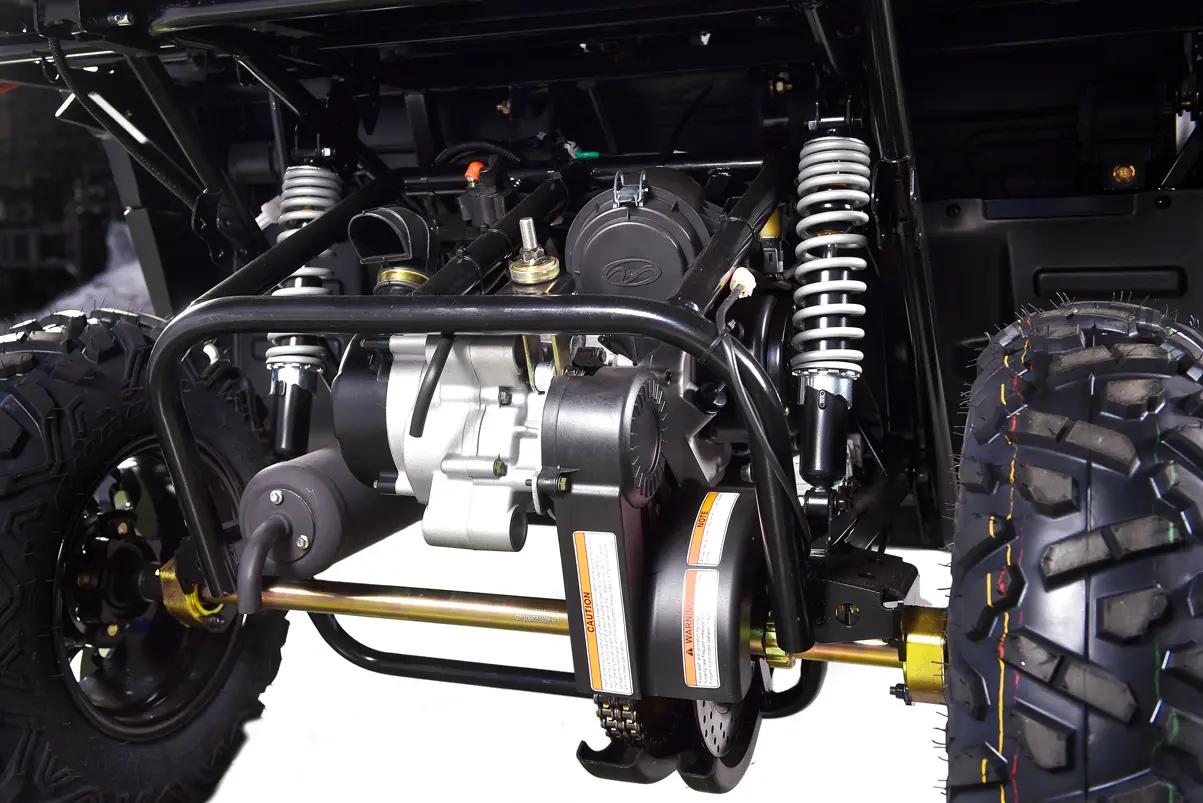

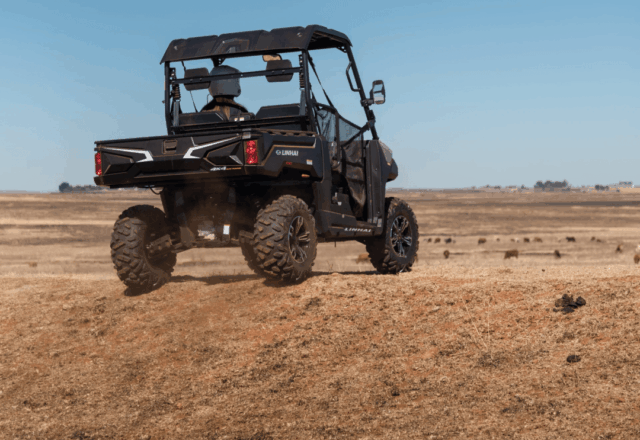

Independent Rear Suspension

Premium dual A-arm independent rear suspension ensures maximum stability and a smooth ride over the harshest off-road terrains.

Specifications

T-Archon 400

2-seater

General Specifications
Model	T-ARCHON 400
Size (L x W x H)	2750 x 1460 x 1860 mm
Wheelbase	1890 mm
Ground Clearance	280 mm
Dry Weight	505 kg
Fuel Tank Capacity	26 L
Max Speed	> 62 km/h
Drive System Type	2WD/4WD
Engine Specifications
Engine Model	LH180MQ-3B
Engine Type	Single cylinder, 4 stroke, liquid cooled
Engine Displacement	352 cc
Bore and Stroke	80 x 70 mm
Max Power	19/7000-7500 (kw/r/min)
Horse Power	25.5 hp
Max Torque	27/5500 (Nm/r/min)
Compression Ratio	9.8:1
Fuel System	EFI
Start Type	Electric starting
Transmission	H-N-R; N-L
Tire and Suspension
Front Tire	AT25 x 8-12
Rear Tire	AT25 x 10-12
Front Brake	Hydraulic Disc
Rear Brake	Hydraulic Disc
Front Suspension	Dual-A arms independent suspension
Rear Suspension	Dual-A arms independent suspension
